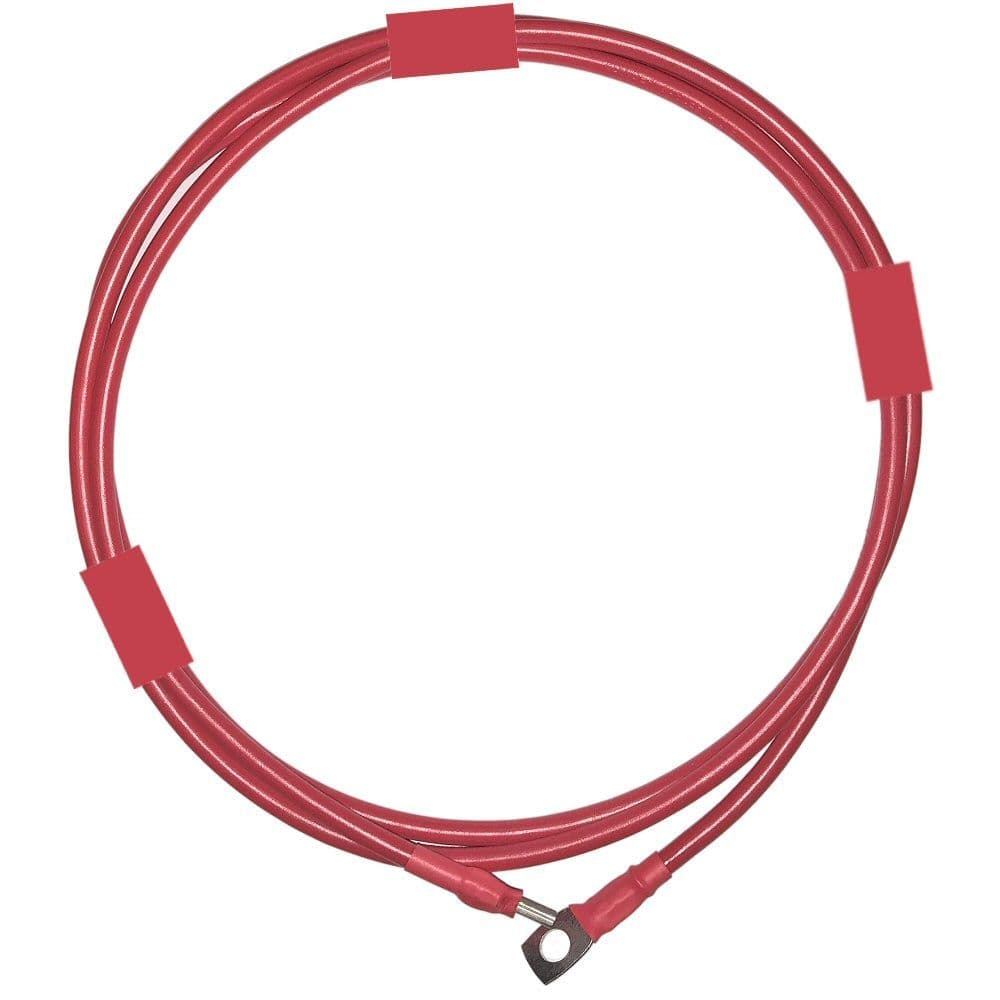

4 Metre Length Victron Energy Blue Power IP22 Battery Charging Cable 10mm² Positive Single M8 Ring

(1 positive RED ) additional charging cable for the range of victron IP22 battery chargers. These cables are Tri-rated BS6231 10mm2 flexible annealed copper conductors heat resistant up to 1050 C . The working voltage of these cables is up to 600v AC or 1000v DC with a maximum current of 75 Amps. This cable is supplied with crimped M8 ring terminal one end and straight blade terminal the other end with zero halogen heat shrink sleeves

This single positive cable is for use with 2 output or 3 output chargers where extra cables are required

Standards
Flame propagation to BS EN 50265, IEC 60332-1
BS6231
UL 1015
BS EN 50525-2-31

Construction
Conductor: Flexible plain annealed copper conductors
Sheath: Circular high temperature PVC outer sheath in a large range of colours

Characteristics
Voltage Rating: up to maximum 600v AC or 1000v DC volts
Maximum 75 Amps
Temperature Limits: -30°C to +105°C

Approvals - UL Approved, CSA Approved, BSi Approved, RoHS, CE.

This product is covered by a manufacturer 1 Year Warranty

Returns accepted within 30 days of purchase date
